Beginner-friendly visual lesson: A friendly diagram and worked example showing HPLC dead time t0, retention time tR and retention factor k, with student quiz.

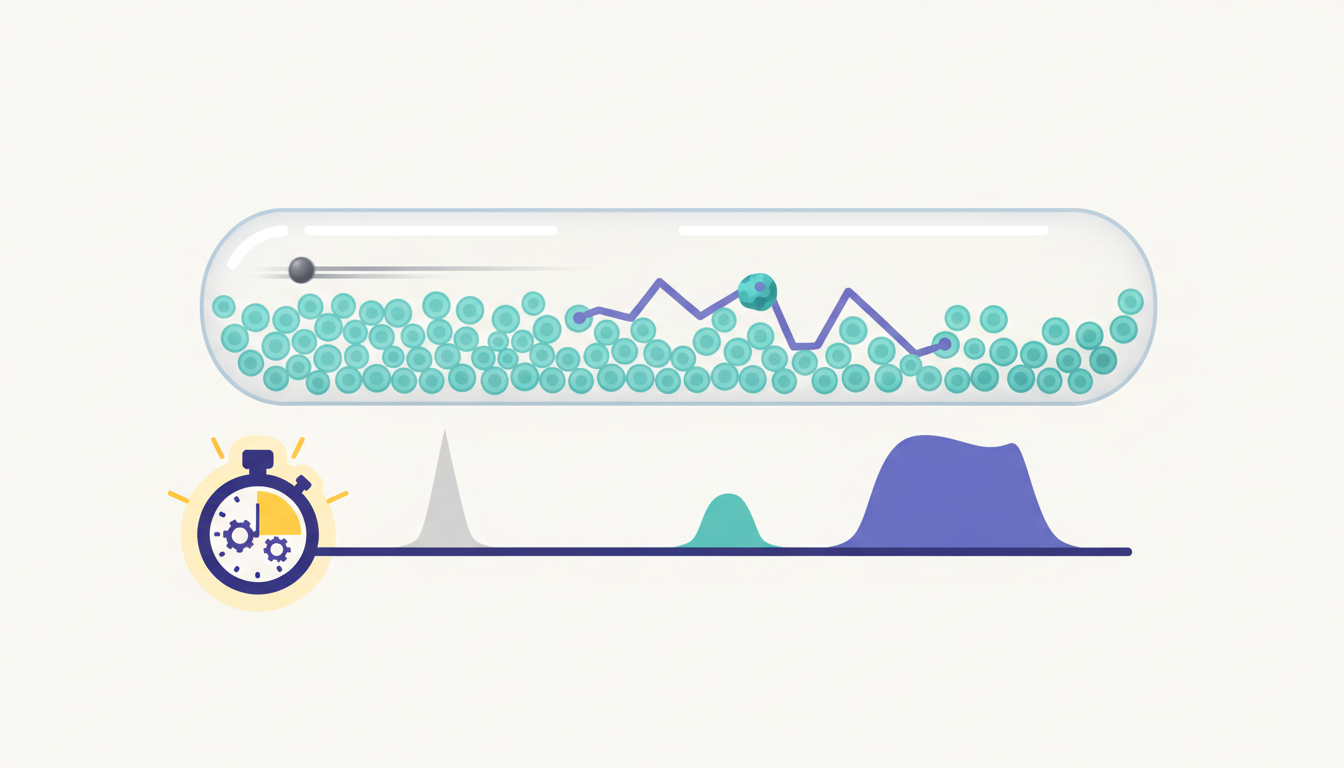

Follow the picture in four steps
| 🔵 Step 1
A nonretained marker moves with mobile phase |
🟣 Step 2
Its time through the system estimates t0 |
🟡 Step 3
The analyte interacts with the stationary phase and elutes at tR |
🟢 Step 4
Compute k=(tR−t0)/t0 |
Picture two students walking through a crowded hallway
One student walks straight through. The other keeps stopping to chat with friends and arrives later. In chromatography, the mobile phase moves through the column while an analyte interacts with the stationary phase. Those interactions often make it leave later than a nonretained marker.
Three different times and values
| Symbol | Meaning | Typical unit |
|---|---|---|
| t0 (sometimes tm) | Hold-up or dead time of a nonretained marker | min |
| tR | Retention time from injection to analyte peak | min |
| k | Retention factor = (tR−t0)/t0 | No unit |
Worked example
Suppose a suitable unretained marker elutes at 1.0 min and your target analyte at 4.0 min. The adjusted retention time is tR−t0 = 3.0 min. Therefore k = (4−1)/1 = 3. In simple terms, the analyte is retained beyond the hold-up time.
Why is k useful?
Two columns of different lengths, run at different flows, can show different absolute tR values. The retention factor provides a normalized description of retention under comparable isocratic conditions. This is especially helpful when thinking about method development. In gradient chromatography, retention changes continuously as solvent composition changes, so the simple isocratic formula is not a complete description of gradient behavior.
What can make tR change?
- Mobile-phase strength, composition and pH.
- Stationary-phase chemistry and column temperature.
- Flow rate and system dwell volume.
- Sample solvent mismatch, injection overload or insufficient equilibration.
Student mistake: is t0 always zero?
No. Even a nonretained molecule needs time to travel with the moving liquid to the detector. Also distinguish column hold-up time from instrument/system contributions, depending on where measurement is defined.
Related: Understanding Retention Time; HILIC Retention Mechanisms.
Quick student quiz
- If t0=1 min and tR=4 min, what is k?
- Does retention factor have units?
- Is this formula a complete model for a gradient run?
Reveal the answers
- 3.
- No; it is dimensionless.
- No; the simple k concept directly fits isocratic conditions.
Further reading
All figures and worked examples are educational illustrations, not substitute measurements for a validated laboratory procedure.
